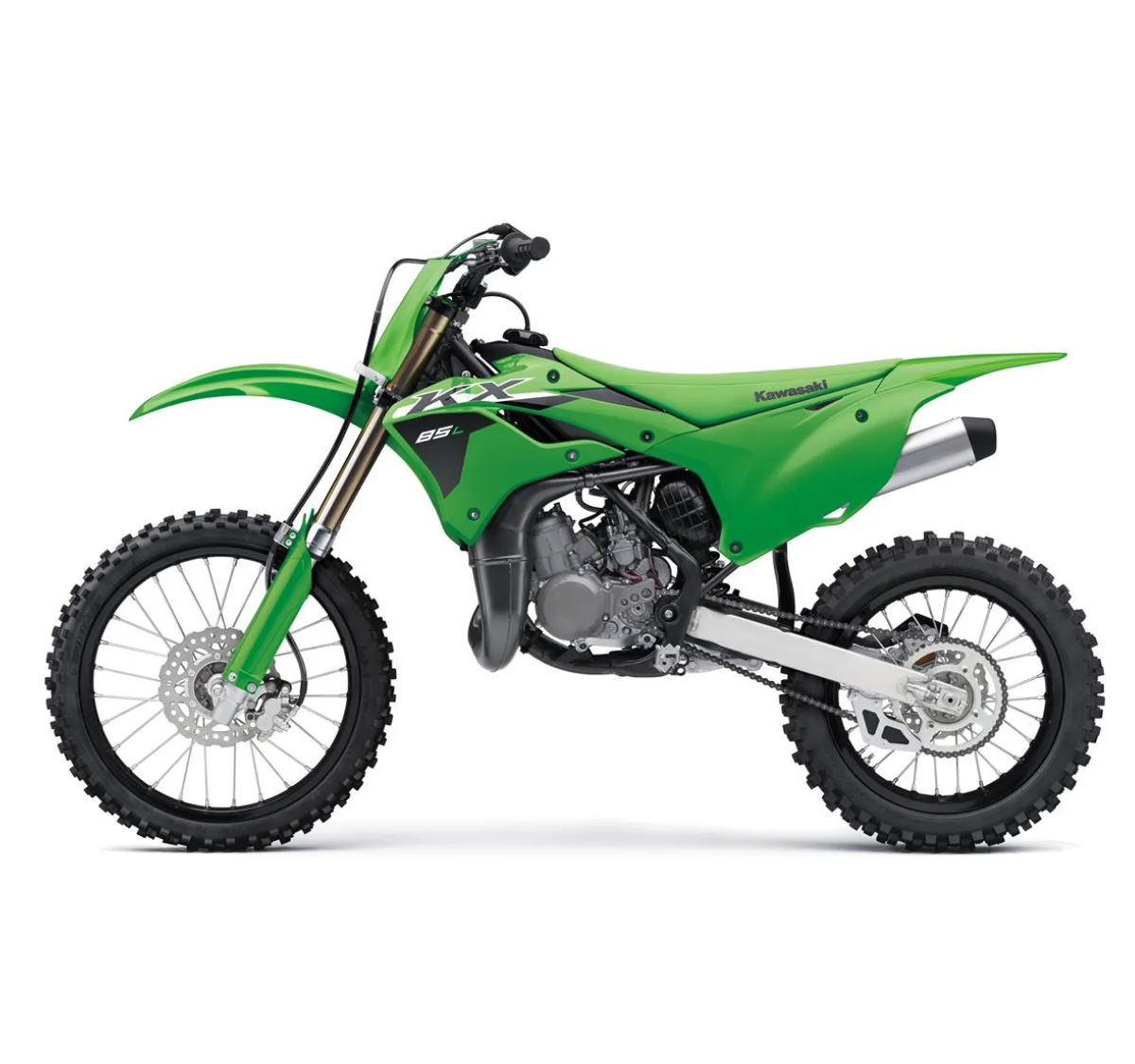

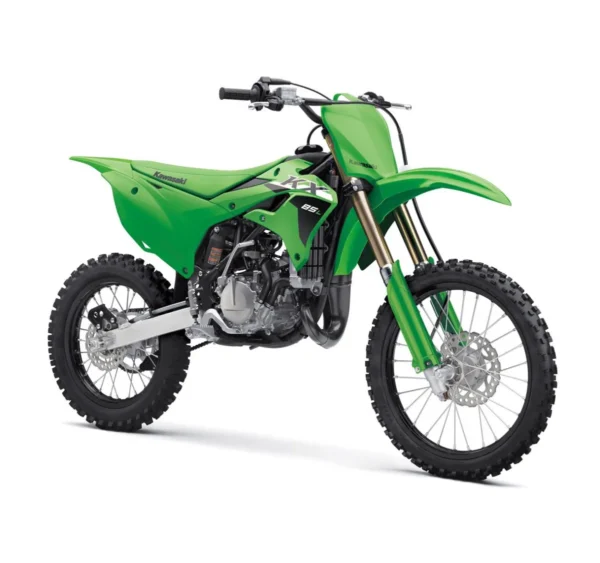

KX85 L

TECH SPECIFICATIONS

Engine type:	Liquid-cooled, 2-stroke Single with KIPS
Compression ratio:	10.9:1 (low speed); 9.0:1 (high speed)
Valve system:	Piston reed valve
Displacement:	84 cm³

Front brakes:	Single 220 mm petal disc. Caliper: Dual-piston
Rear brakes:	Single 184 mm petal disc. Caliper: Single-piston
Front suspension:	36 mm inverted telescopic fork with adjustable compression damping
Rear suspension:	Uni Trak, single shock with adjustable compression and rebound damping and adjustable spring preload

Frame type:	Perimeter, high-tensile steel
Trail:	97mm
Front tyre:	70/100-19 42M
Rear tyre:	90/100-16 51M
Fuel capacity:	5 litres
Seat height:	870 mm
Road clearance:	330 mm
Curb mass:	77 kg
L x W x H:	1,920 x 765 x 1,150 mm
