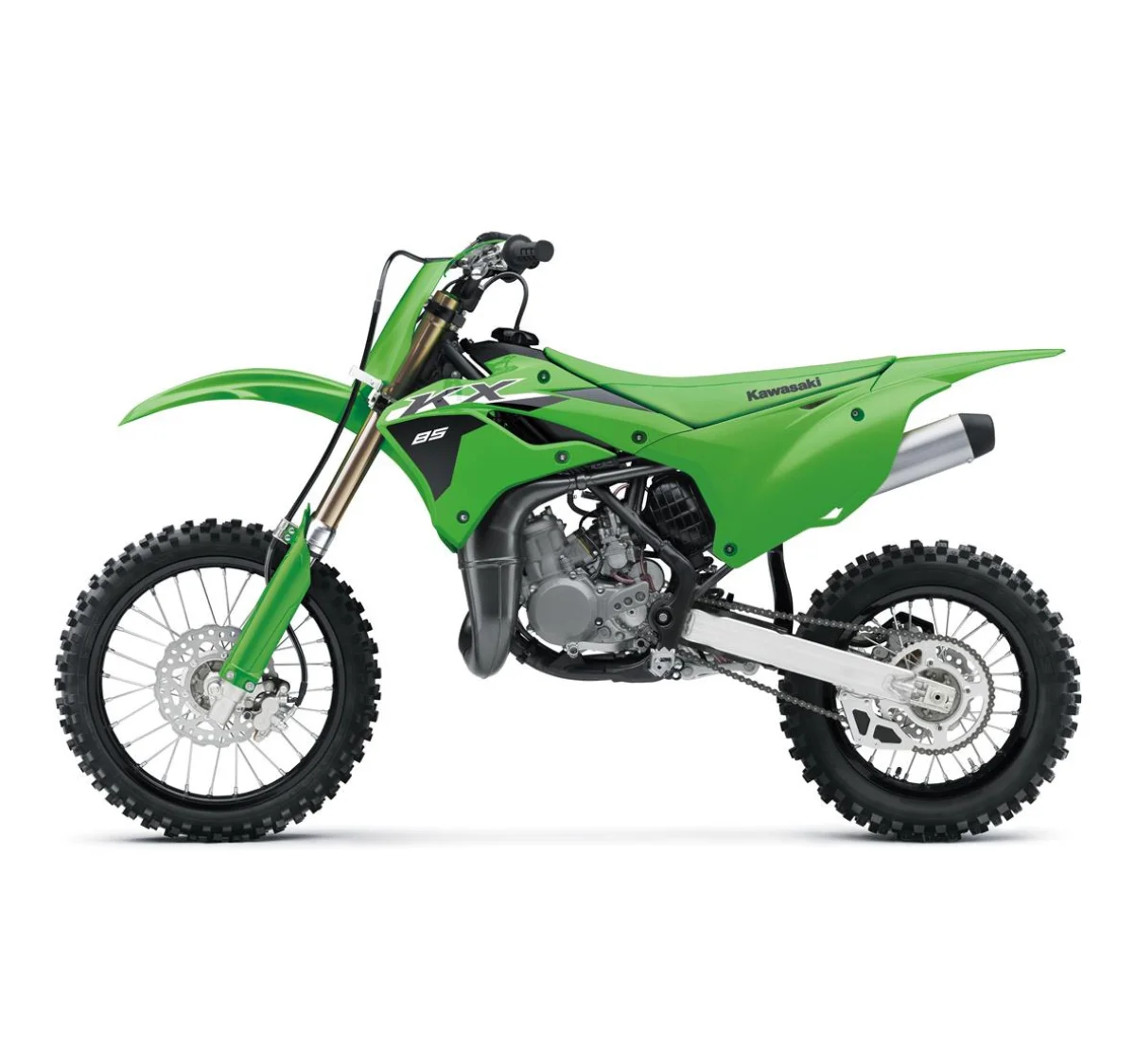

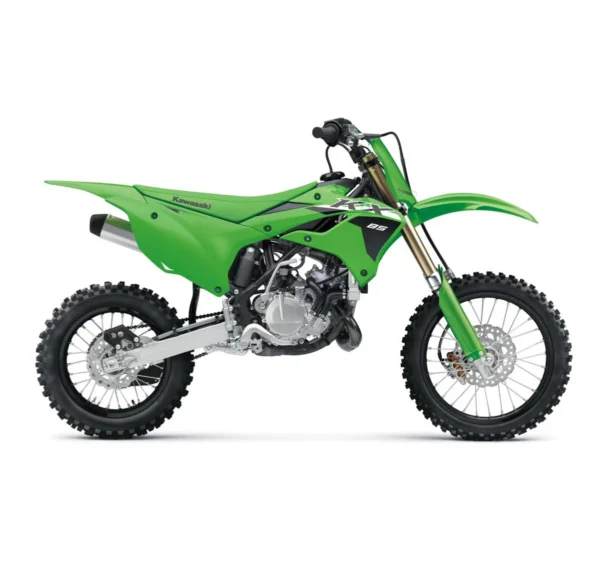

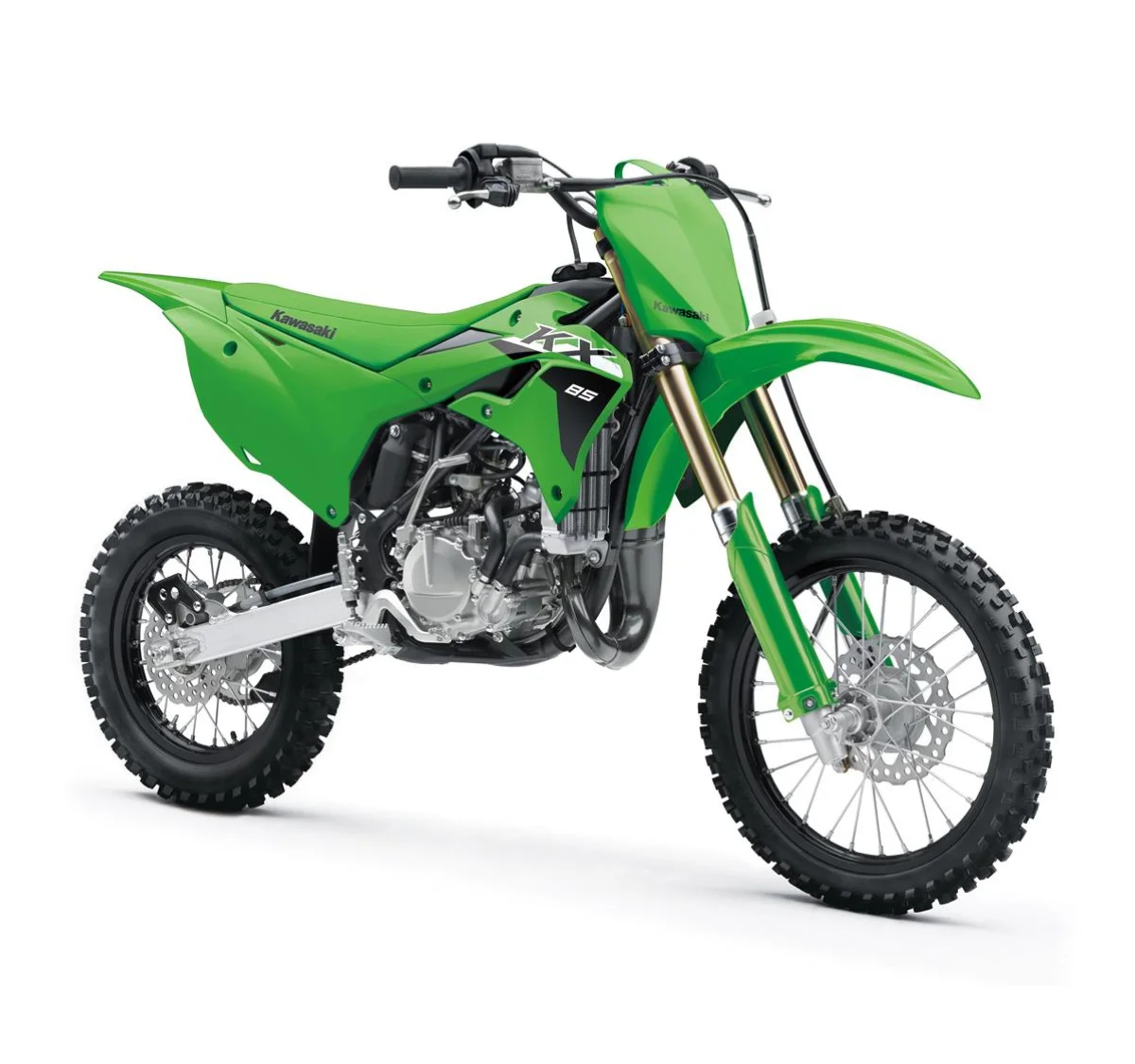

KX85

TECH SPECIFICATIONS

Engine type:	Liquid-cooled, 2-stroke Single with KIPS
Compression ratio:	10.9:1 (low speed); 9.0:1 (high speed)
Valve system:	Piston reed valve
Displacement:	84 cm³

Front brakes:	Single 220 mm petal disc. Caliper: Dual-piston
Rear brakes:	Single 184 mm petal disc. Caliper: Single-piston
Front suspension:	36 mm inverted telescopic fork with adjustable compression damping
Rear suspension:	Uni Trak, single shock with adjustable compression and rebound damping and adjustable spring preload

Frame type:	Perimeter, high-tensile steel
Trail:	97mm
Front tyre:	70/100-17 40M
Rear tyre:	90/100-14 49M
Fuel capacity:	5 litres
Seat height:	830 mm
Road clearance:	290 mm
Curb mass:	74.6 kg
L x W x H:	1,830 x 765 x 1,110 mm
